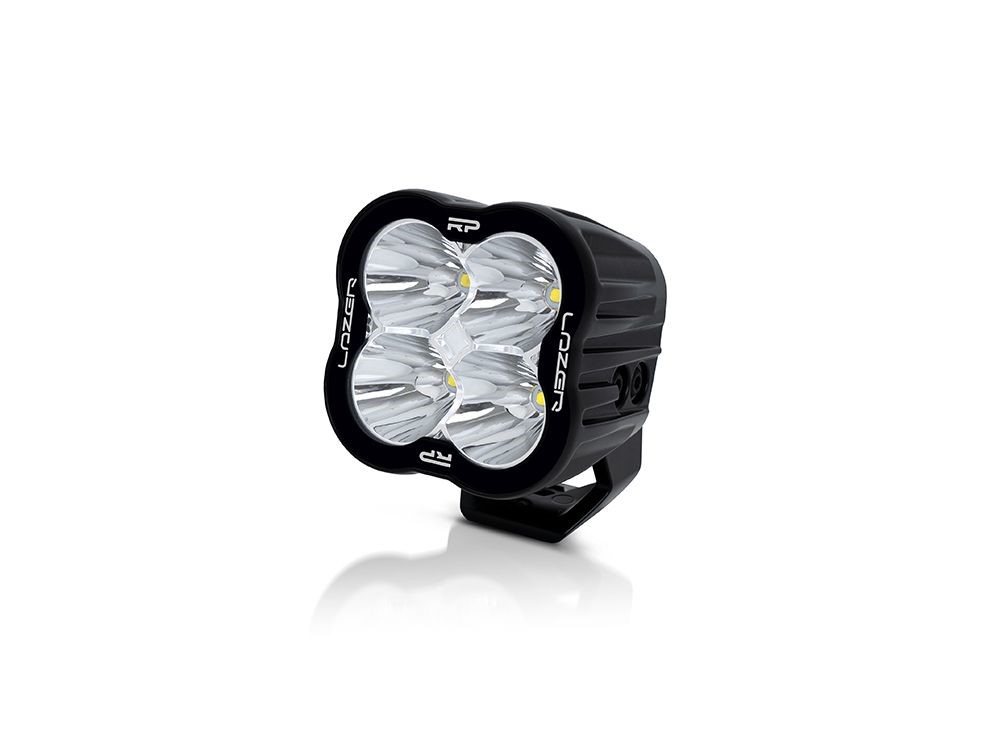

The RP Spot is an ‘off-road’ LED light built for performance and durability. Boasting 4x premium-bin 20W LEDs, the lamp produces 8,940 raw lumens which combine with the ultra-reflective, vacuum-metallised ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 392m), but still with 20 degrees left/right spread of light.

To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Lazer’ branded lens cover is included with each light.

Like all Lazer Lamps' products the RP Spot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.

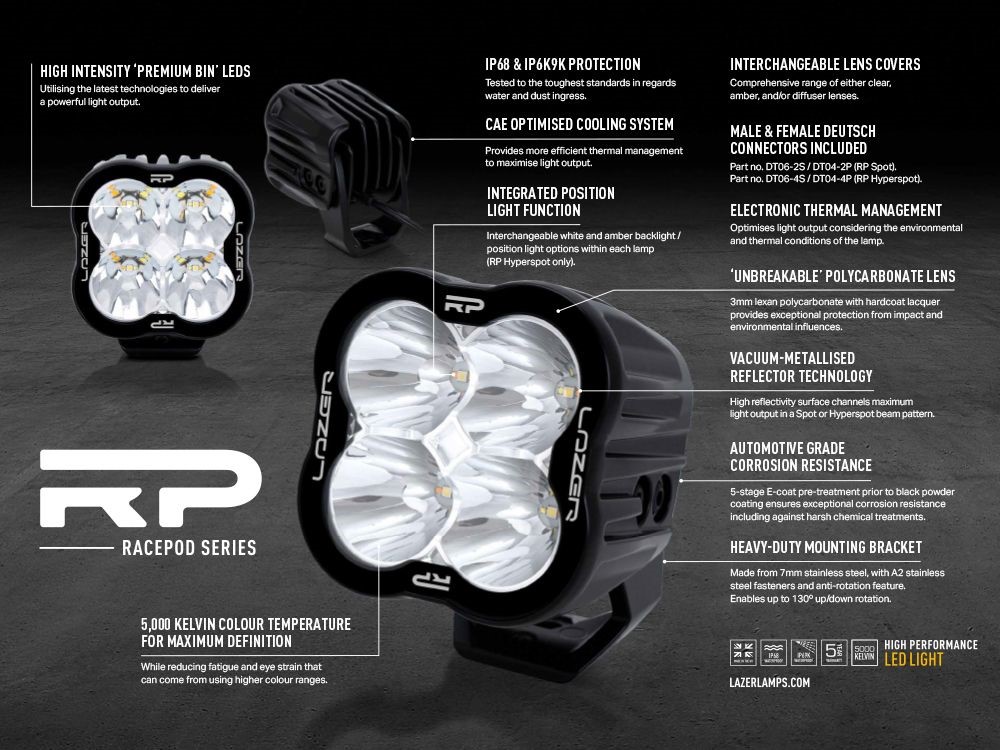

Utilizing 4 high-intensity 20W LEDs

Vacuum-metallized ‘boost’ optics deliver spot beam pattern

Marine grade Aluminium lamp body

A2 Stainless Steel fasteners, delta-sealed for maximum corrosion protection.

CAE optimized cooling system with Electronic Thermal Management

5000k color temperature

Comprehensive range of lens covers available

Die-cast, heavy-duty mounting bracket

‘Unbreakable’ polycarbonate lens with hardcoat

Automotive grade corrosion resistance

IP68 / IP69k approved

Over voltage protected

Reverse polarity protected

Includes male/female (2-pin) Deutsch connectors

5year warranty

Made in the UK

RP Spot

Voltage Range (DC) 10-32V
LED Life 50,000 hrs
Weight 1.1 kg
HIGH BEAM FUNCTION
Total Luminous Flux 8940 Lm
Total Driver 'FOV' Flux † 6079 Lm
Colour Temperature 5000k
Number of High Output LEDs 4
Power Consumption 80 W
Current Draw (at 14.4V) 5.6 A
DIMENTIONS
Width 107mm
Depth 108mm
Height 107mm
PHOTOMETRIC DATA

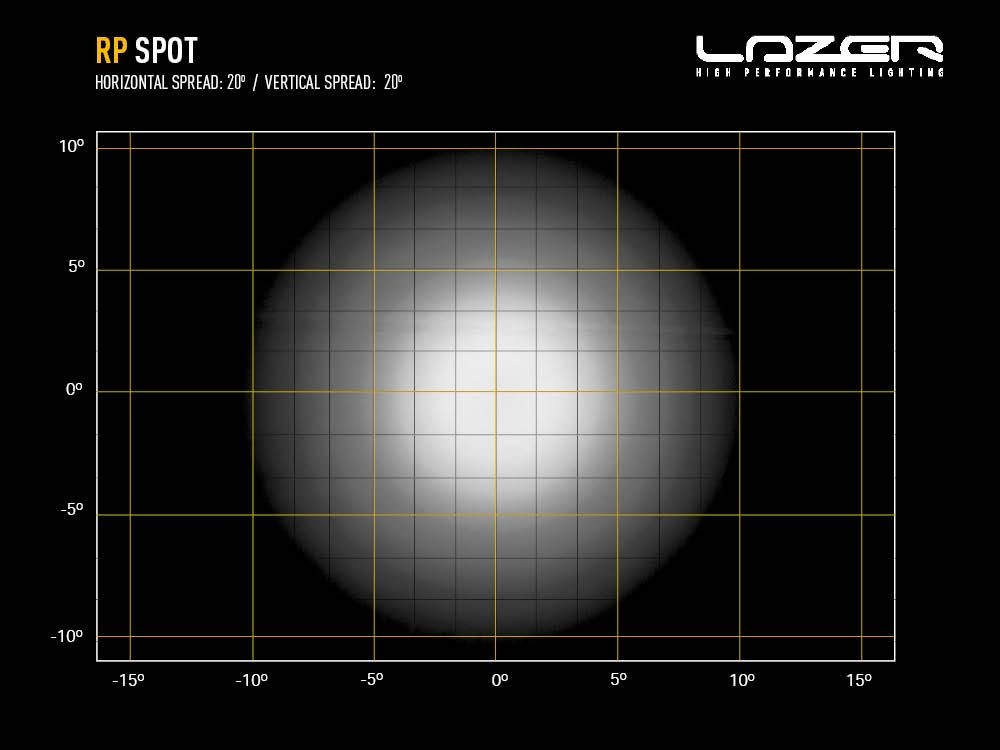

Horiz Beam Angle 20°

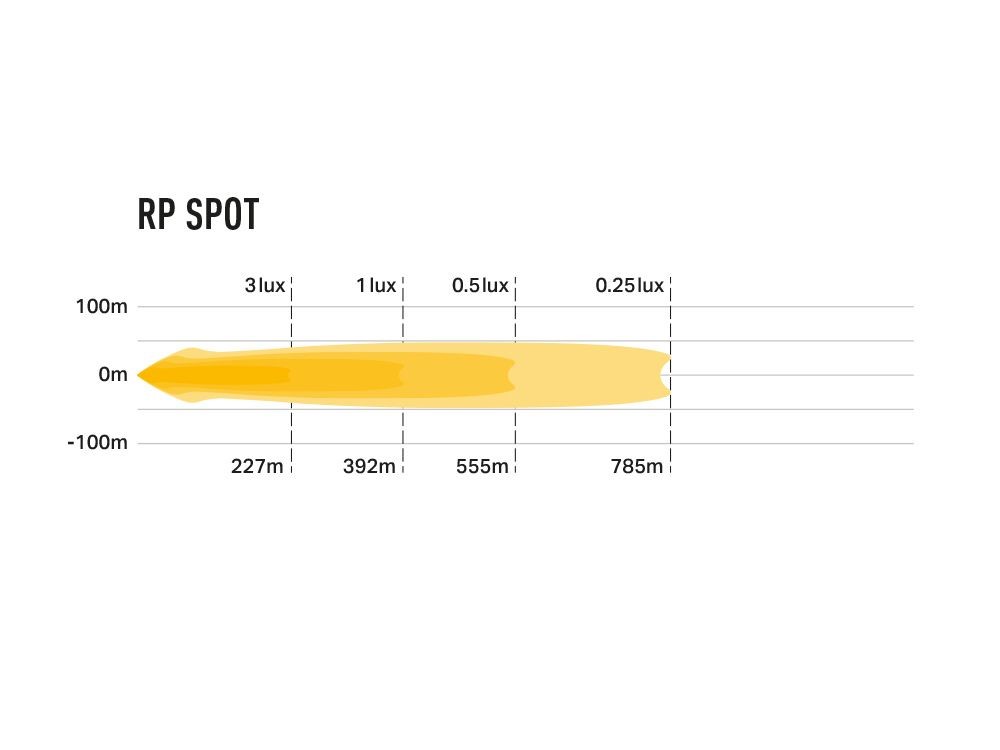

0.25 lx Line 785m
0.5 lx Line 555m
1 lx Line 392m
3 lx Line 227m
