LED work light Lazer UTILITY-25

00U25 5
News
00U25 5
00U25 1
00U25 2
00U25 3
00U25 4
149,7 EUR 123,7 EUR excl. VAT
On Order
Personally in shop:on requestWith a delivery company:on request
Code00U25ProducerLazer Lamps

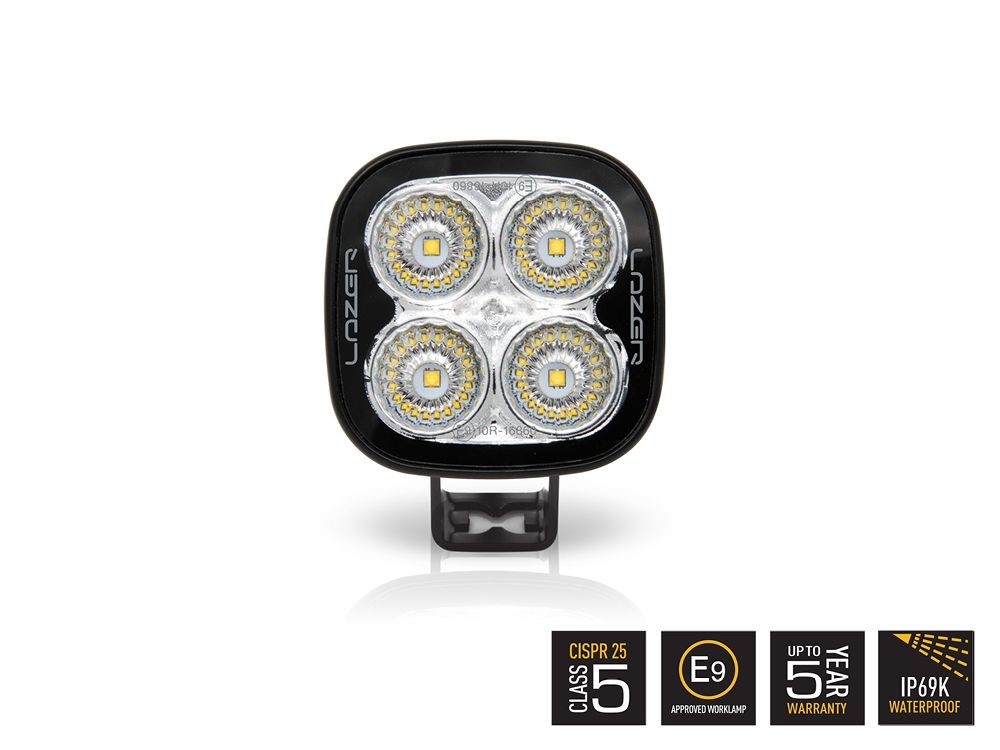

The Utility-25 is a hugely versatile, medium-duty work light, which through the latest advances in LED lighting technology, gives superior levels of light output considering its compact size. Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 utilises highly efficient 6W LEDs from a world-leader in LED design and manufacture. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 3,016 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with EU regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 5†) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-25 also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.

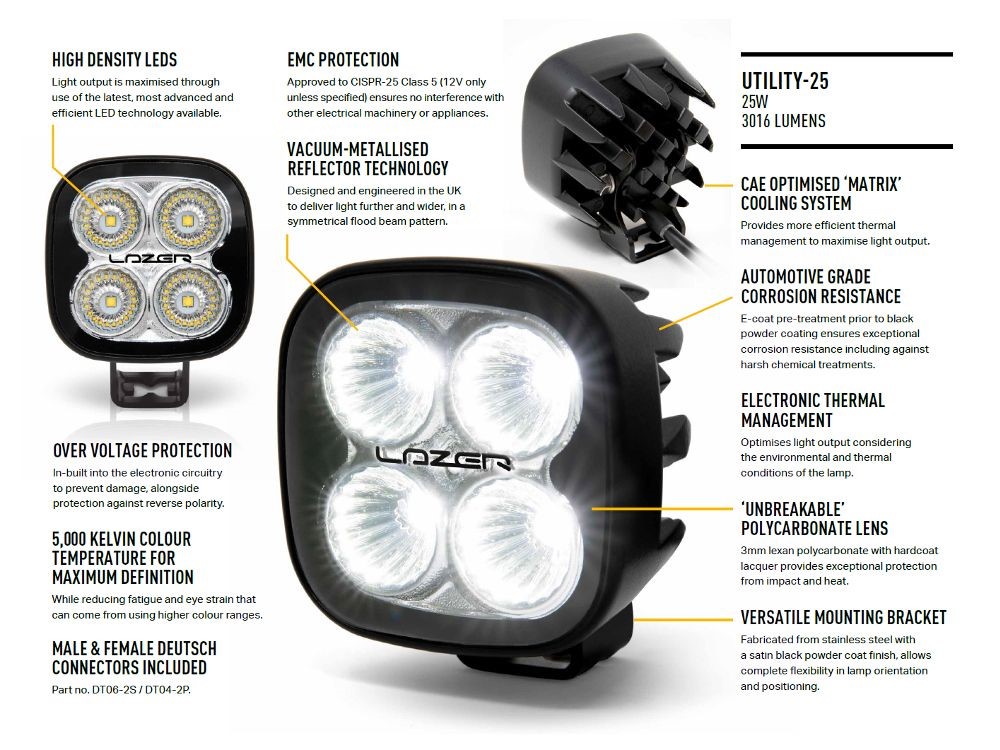

UNECE approved Work Light (Reg 10)

High density, premium ‘bin’ LEDs

Advanced optical design delivers superior lighting performance

CAE optimised 'Matrix' cooling system offers improved thermal dynamics

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

EMC protected - CISPR 25: 2008 (Class 5)

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP69 watertight

5-year warranty*

Supplied with pre-wired male/female 2-pin Deutsch connectors

Designed and manufactured in UK

VýrobceLazer Lamps
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 360 gr
HIGH BEAM FUNCTION
Total Luminous Flux 3016 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 25 Watts
Current Draw (at 14.4V) 1.6 Amps
CERTIFICATION
Work Lamp  ECE R10
IP Rating IP68 / IP69K
Salt Spray Test ISO 9227 (2000H)
EMC Protection CISPR-25 (Class 5)
OPERATING CONDITIONS
Vibration (BS EN 60068)  10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature -40deg C ... +90degC

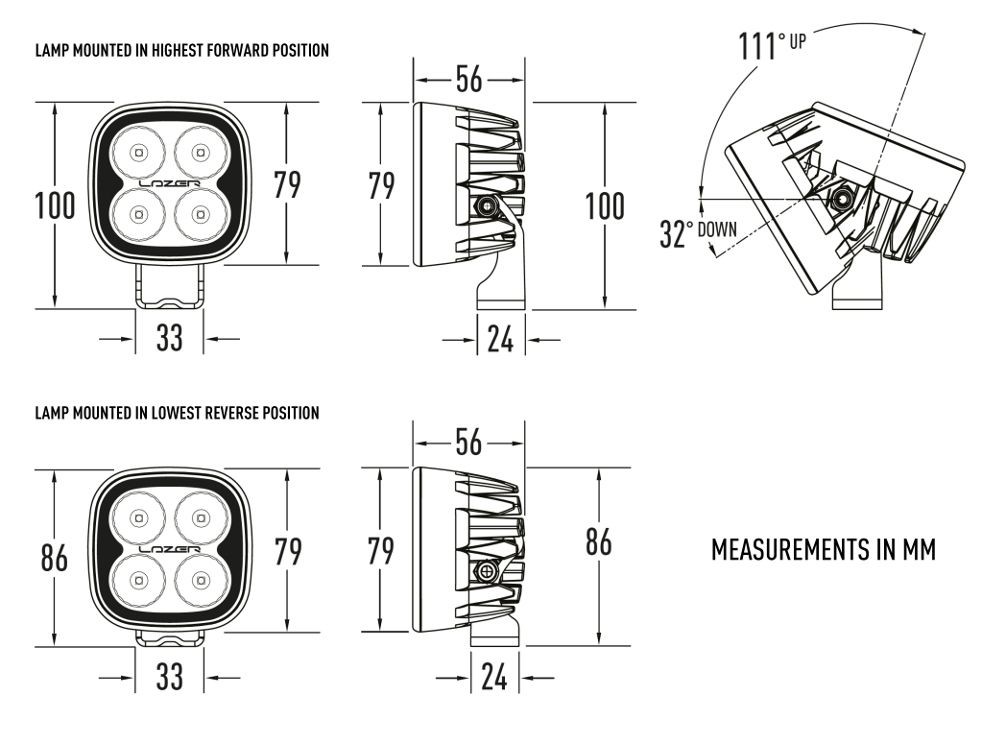

DIMENSIONS
Width 80 mm
Depth 56 mm
Height 80 mm

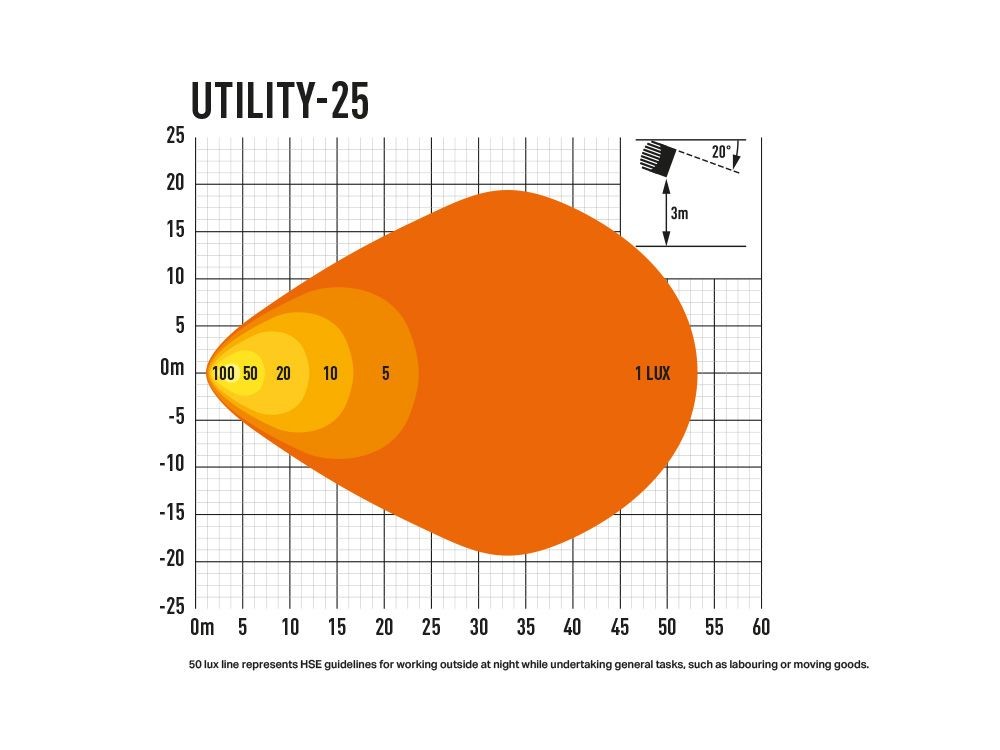

PHOTOMETRIC DATA
1Lx Line @ 54m
5Lx Line @ 24m
20Lx Line @ 12m
50Lx Line @  7m*
